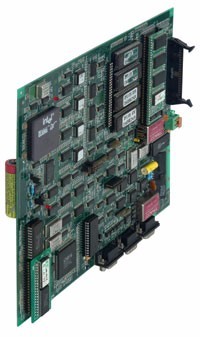

Product Overview:

Intelligent control: It is controlled by a microprocessor, and its program is stored in EPROM. It controls various functions of the board and the RS232 serial interface, and communicates with the control system through the ARCNET network interface.

Monitor interface: connect VGA type monitor and allow to connect two monitors.

Keyboard interface: used to connect the keyboard and various function keys.

RS232 serial interface: There are two RS232 interfaces, which are used to connect the printer unit and the internal diagnostic terminal respectively.

ARCNET network interface: used to communicate with the control system.

Compatible with 15AD50G.

Application range:

OPC display (CRT picture tube type) suitable for early imported G.DX1/X2.
