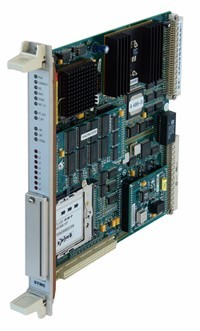

Product Overview:

     It has an ARCNET communication interface and two RS232 serial ports;

     It can communicate with all slave boards in the system through the bus interface and the X1 connector on the board;

     The cables to the ARCNET and RS232 terminals are realized through the external interface circuit connected to X2 on the 486CPU board;

     There are eleven indicators on the front panel to indicate the status of the board, and there are also eight reserved indicators;

     The processor adopts INTEL 486CPU, and the FLASH card adopts PCMCIA structure, which can be plugged and unplugged by the user from the front panel;

     Communicate with the peripheral network through the connection board (AV2.908.0484);

     Compatible with 15AD99G0004.

Application range:

G.D X1/X2 MICRO2 system / ZB25/ZB45 soft and hard box packing machine;

G.D X1 MICRO2 / ZB25-C reel type soft box packing machine;

G.D S90/YF13 Cigarette Storage Conveyor;

ZB47 Hard case packing machine.
